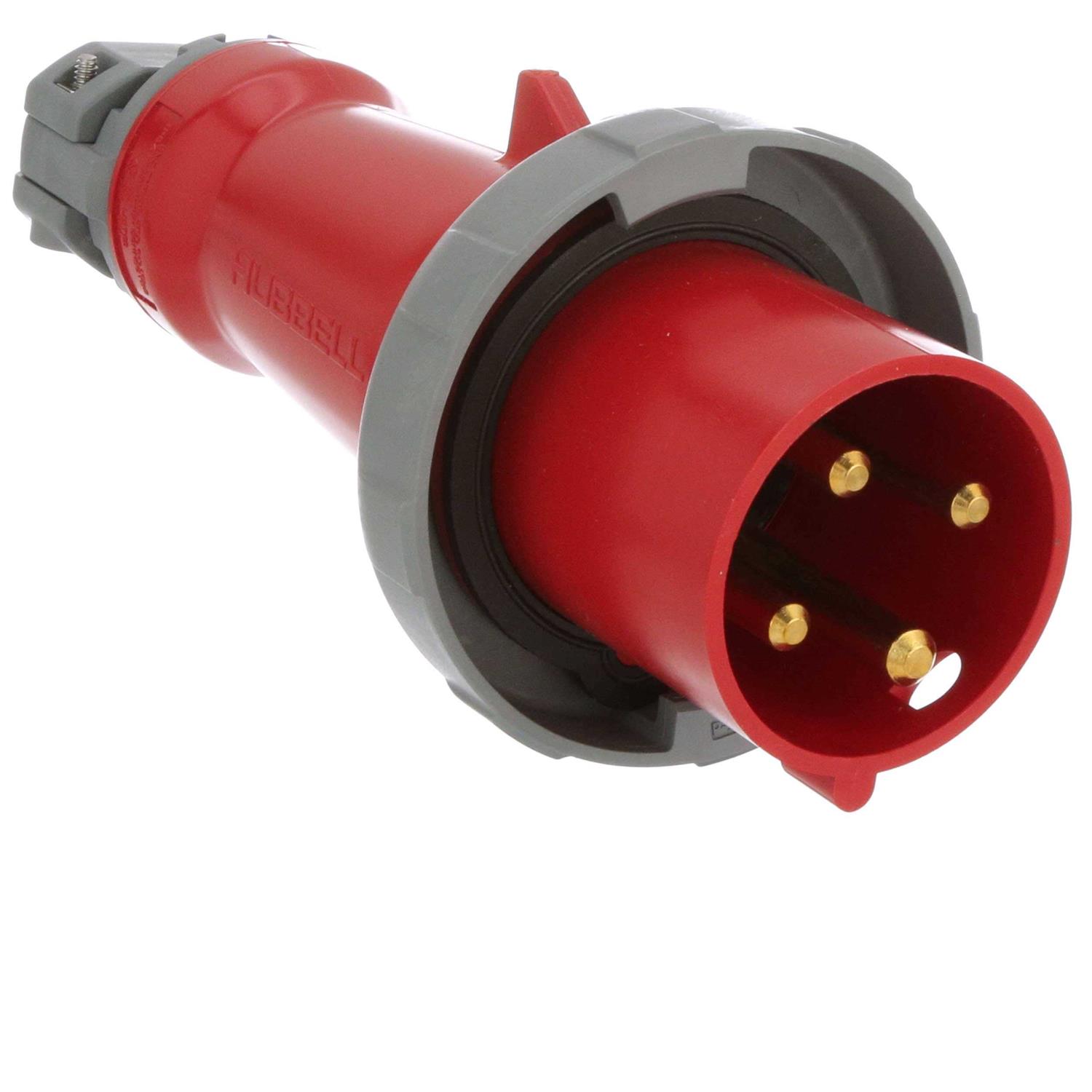

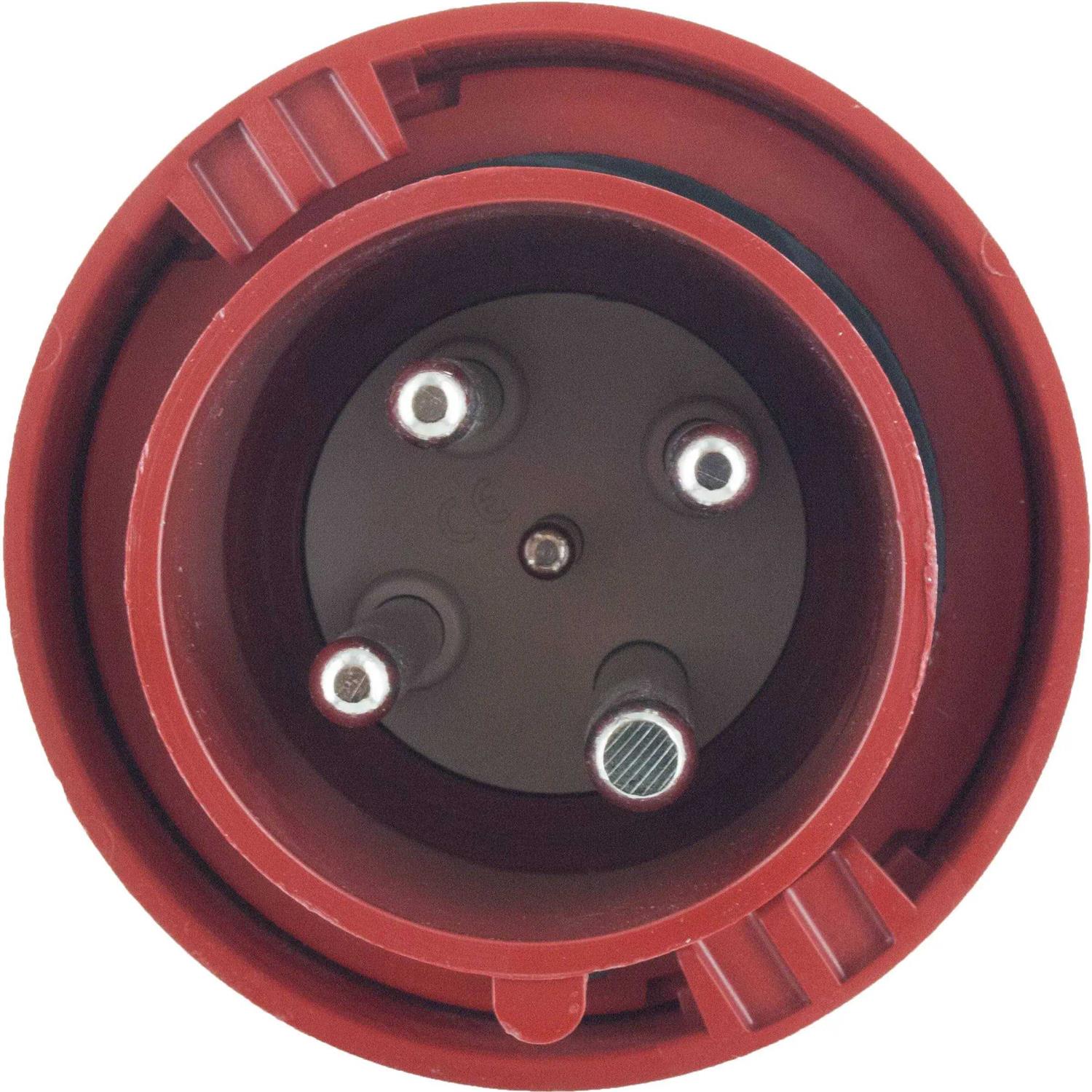

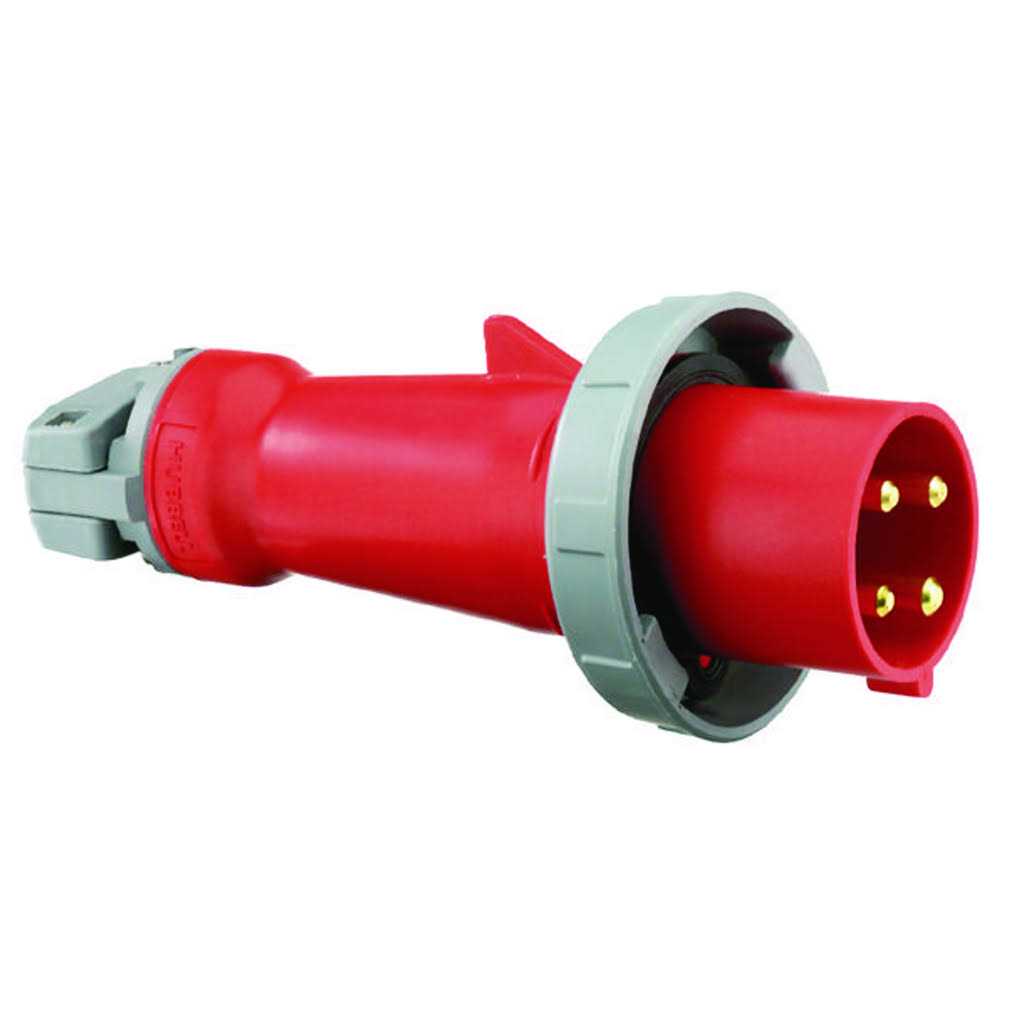

Hubbell HBL460P7W IEC Pin and Sleeve Plug

IEC Nonmetallic Watertight Pin and Sleeve DevicesDesigned and manufactured to meet international standards IEC 60309-1 and 60309-2. Feature a nonconductive nylon housing and OSHA-compliant lockout hole in the plug shroud to provide additional safety. The all-nonmetallic housing withstands heavy-duty industrial environments. Devices are color-coded for each specific voltage. Pin configurations are singly rated to prevent accidental mismating. IEC Pin and Sleeve Plug, Body Material – Pin and Sleeve Zytel 801 Nylon, Amps – Plugs and Receptacles 60, Voltage – Plugs and Receptacles 480VAC, Color – Plugs and Receptacles Red, Number of Poles 3, Number of Wires 4, Grounding Style IEC, Phase – Electrical 3, HP 10, Features Watertight and Abuse Resistant, Standards UL Listed E146032, UL Listed 1682 and 1686C2, IEC 309-1 and 309-2, CSA Certified file Nbr: LR280C, C22.2 No. 182.1
