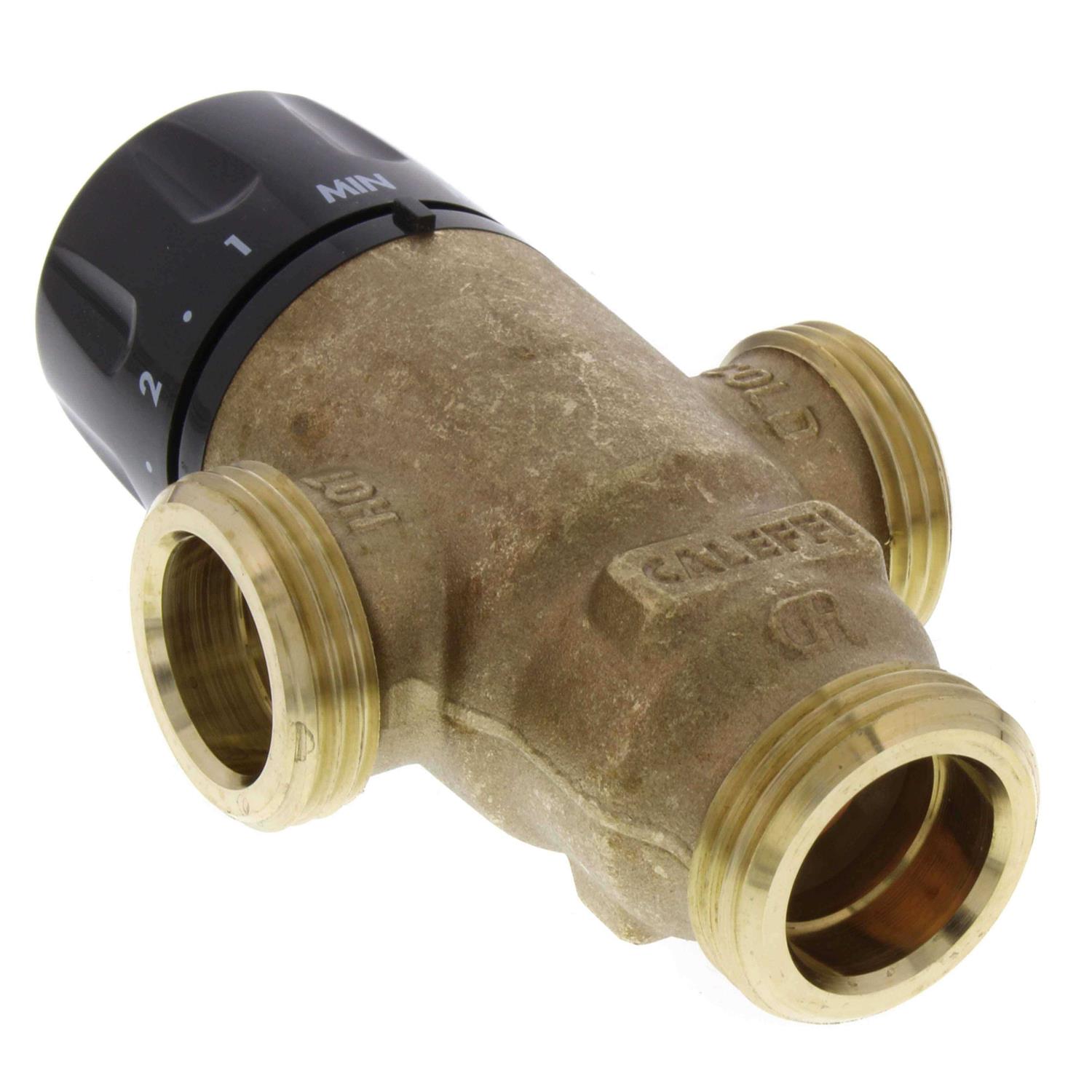

Caleffi 521619A 3-Way Mixing Valve w Adaptor and Gauge

$81.99

Caleffi 521619A 3-Way Mixing Valve W Adaptor and Gauge Low-Lead

FREE SHIPPING ON ORDERS OVER $50

The Caleffi MixCal 521 series three way thermostatic mixing valve is used in systems producing domestic hot water or in hydronic and radiant heating systems. It maintains the desired output temperature of the mixed water supplied at a constant set value compensating for both temperature and pressure fluctuations of the incoming hot and cold water. The MixCal thermostatic mixing valve is ICC-ES certified to ASSE 1017 and CSA B1253. It complies with codes IPC, IRC accordance with the US and Canadian plumbing codes and standard NSF/ANSI 372 low lead. Low lead ball valves available for inlet and outlet isolation field install. FEATURES For point of distribution in domestic water systems and radiant hydronic heating systems. Low lead brass valve body. Internal anti scale materials. Peroxide cured EPDM seals. Locking set point knob. Max working pressure 200 psi Max recommended differential pressure 20 psi Max inlet temp 200 ̊F Adjustable range 85 ̊ – 150 ̊F Min flow for optimum performance 1.0 gpm
