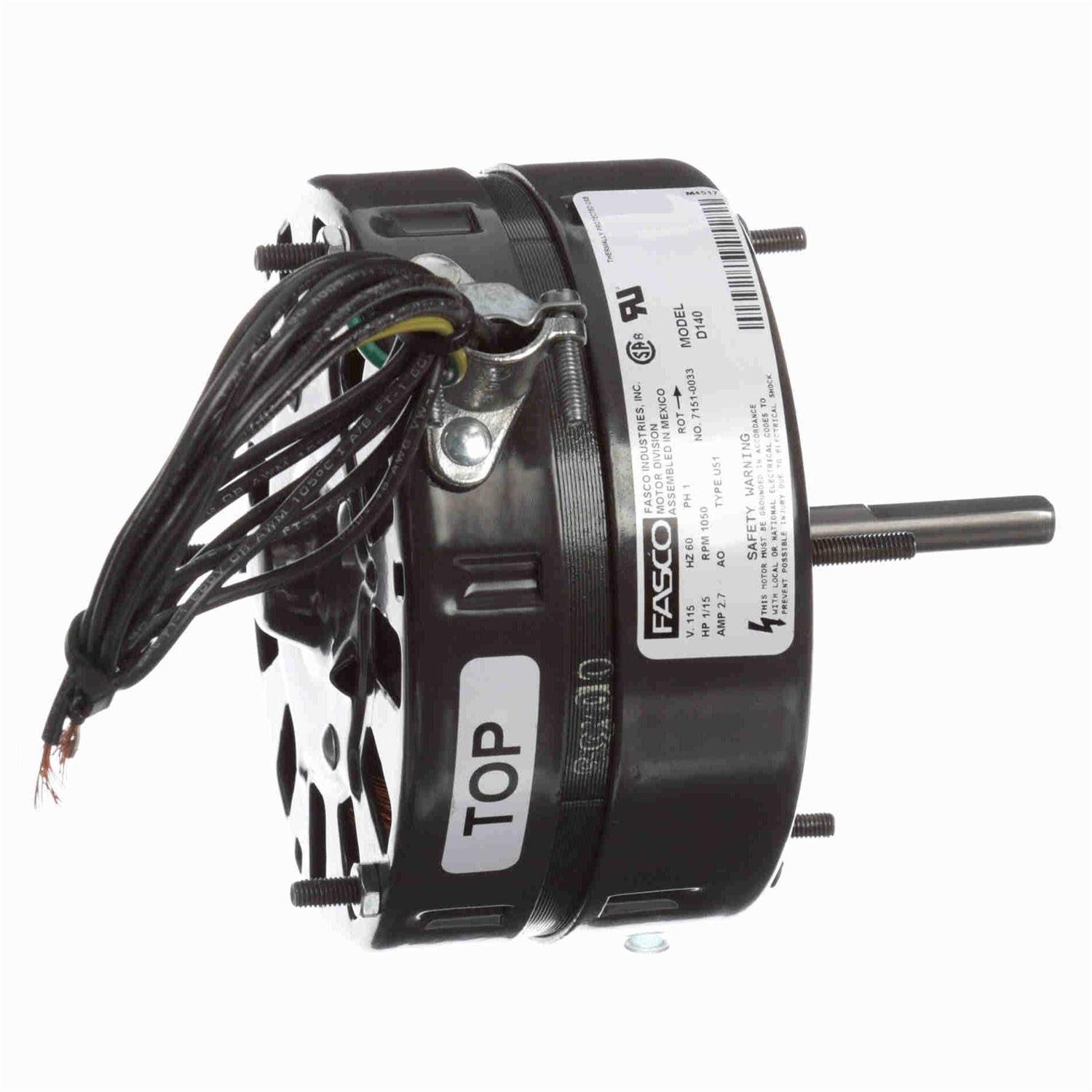

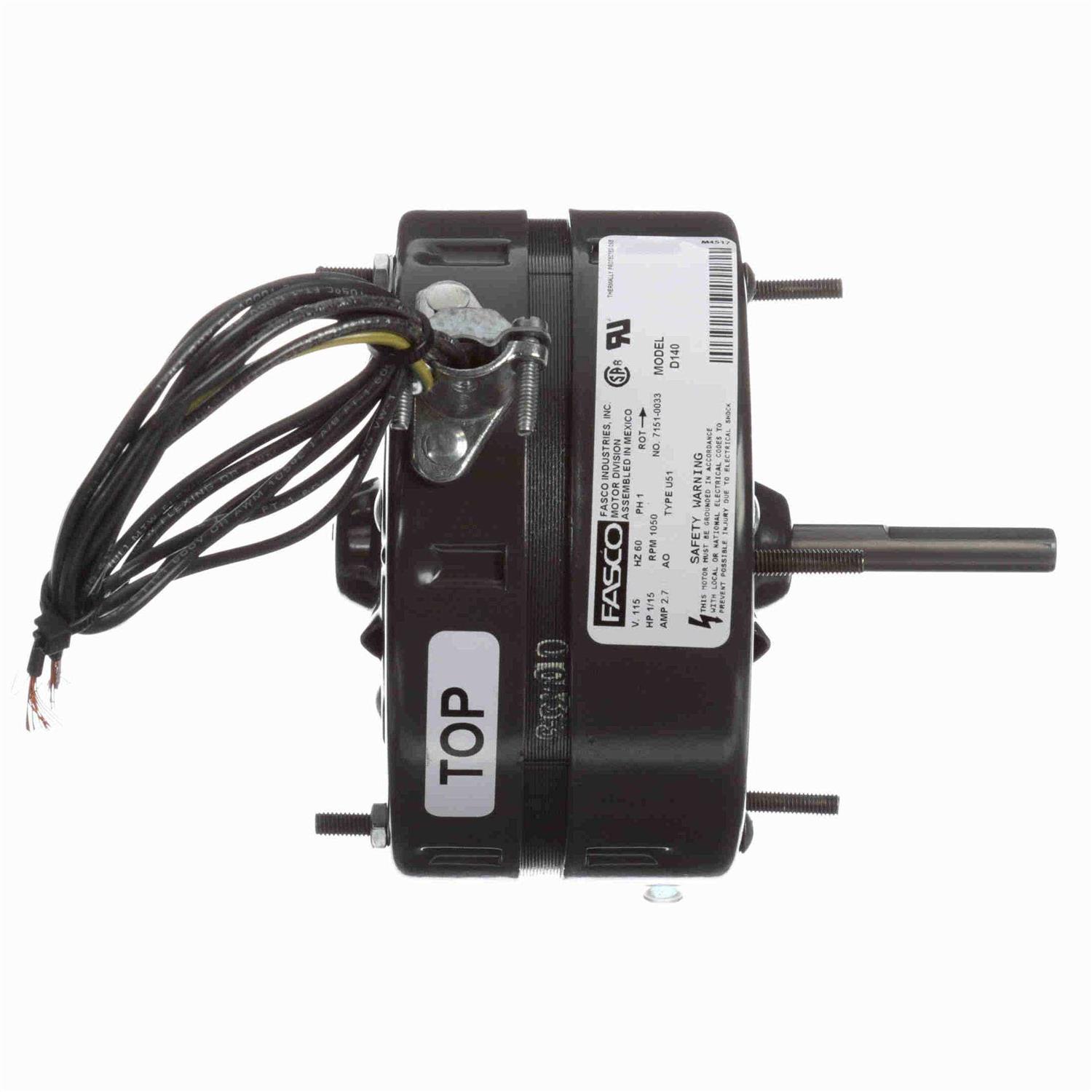

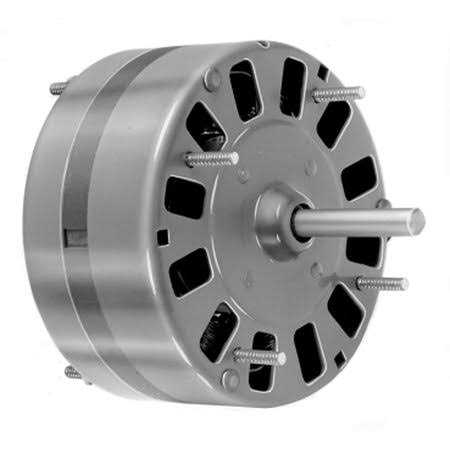

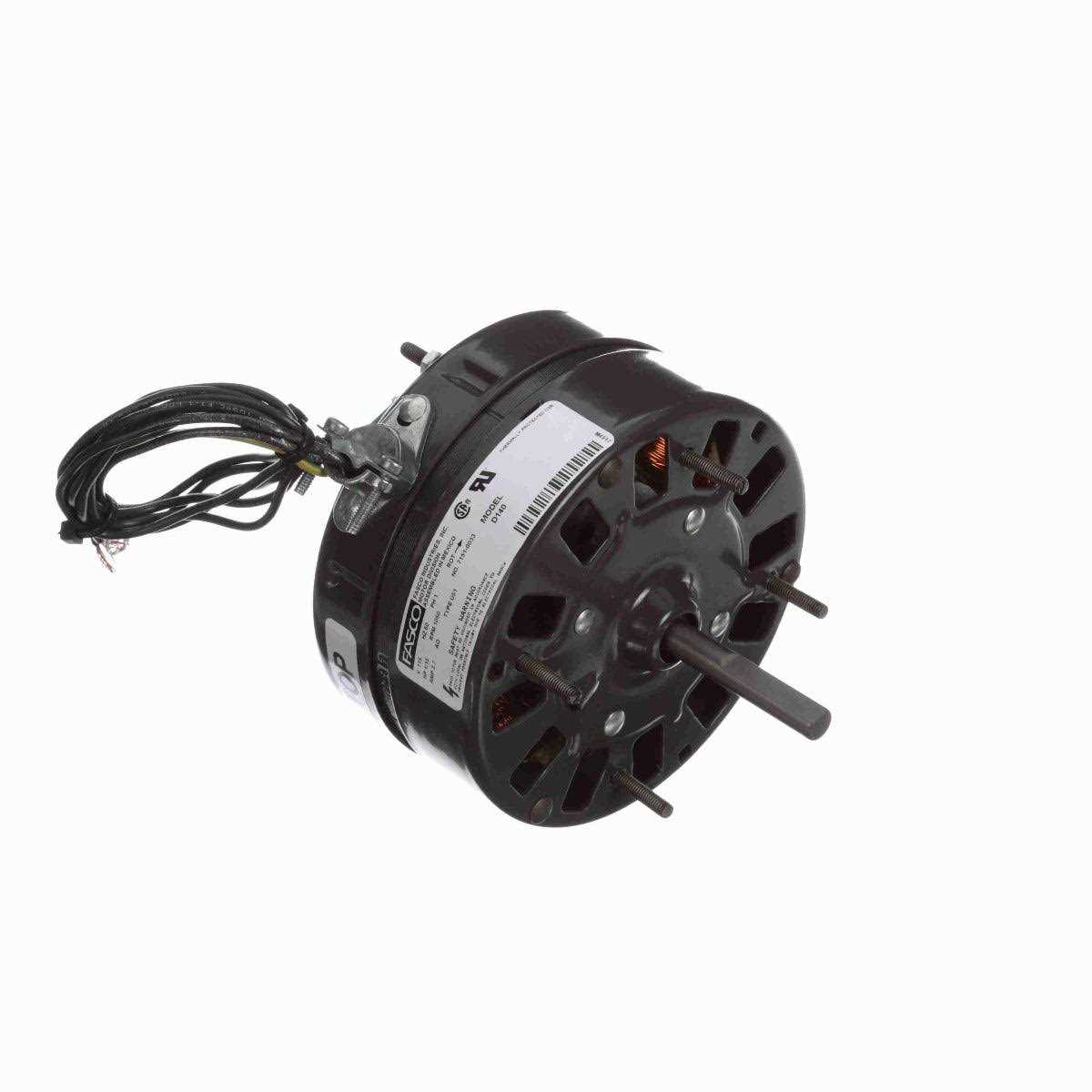

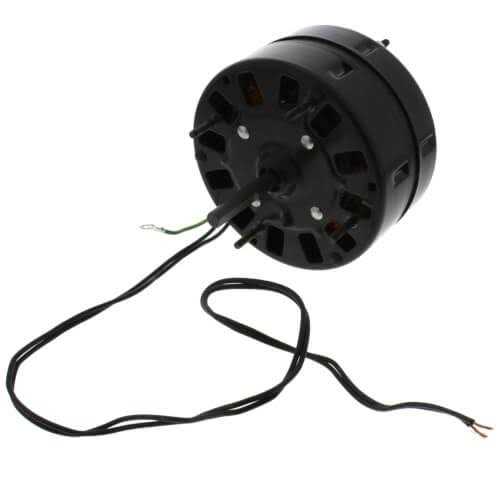

Fasco D140 5

SKU – D140 UPC – 815585028604 Ventilation – Unit Heater Motor 5″ Diameter – 42 Frame Shaded Pole Thermally Protected Open Air Over Class A Insulation, 40°C Ambient Sleeve Bearing 3/8″ Diameter Shaft with Flat?” Leads (4) Extended Studs Shaft End, (2) Extended Studs Lead End Length 5.13 Width 5.13 Height 10.00 Dimension Unit of Measure IN Weight 5.00 Country of Origin Mexico Units in Package 1 Power Rating (In HP) 0.07 Power Rating (In KW) 0.05 Speed (Max) 1050 Voltage 115 Frame Size 42 Enclosure Type Open Air Over Rotation Clockwise Shaft End Mounting Type Extended Studs Max Ambient 40°C Shaft Diameter ( In in.) 0.375 C Dim 5.51 Connection Drawing No NA DE Bearing Type Sleeve Duty Air Over Electrical Type Shaded Pole Frame Length Frame Material Na Frame Type 42 Frequency 60 HP2 1/15 Number of Poles 6 Number of speeds 1 ODE Bearing Type Sleeve Outline Drawing No 7151003340_S001 Service Factor 1 Shaft Extension 2.42 Shaft Type Flat Speed2 1050 Starting Type Across The LineThermally Protected UDF_MANUFACTURER Fasco
