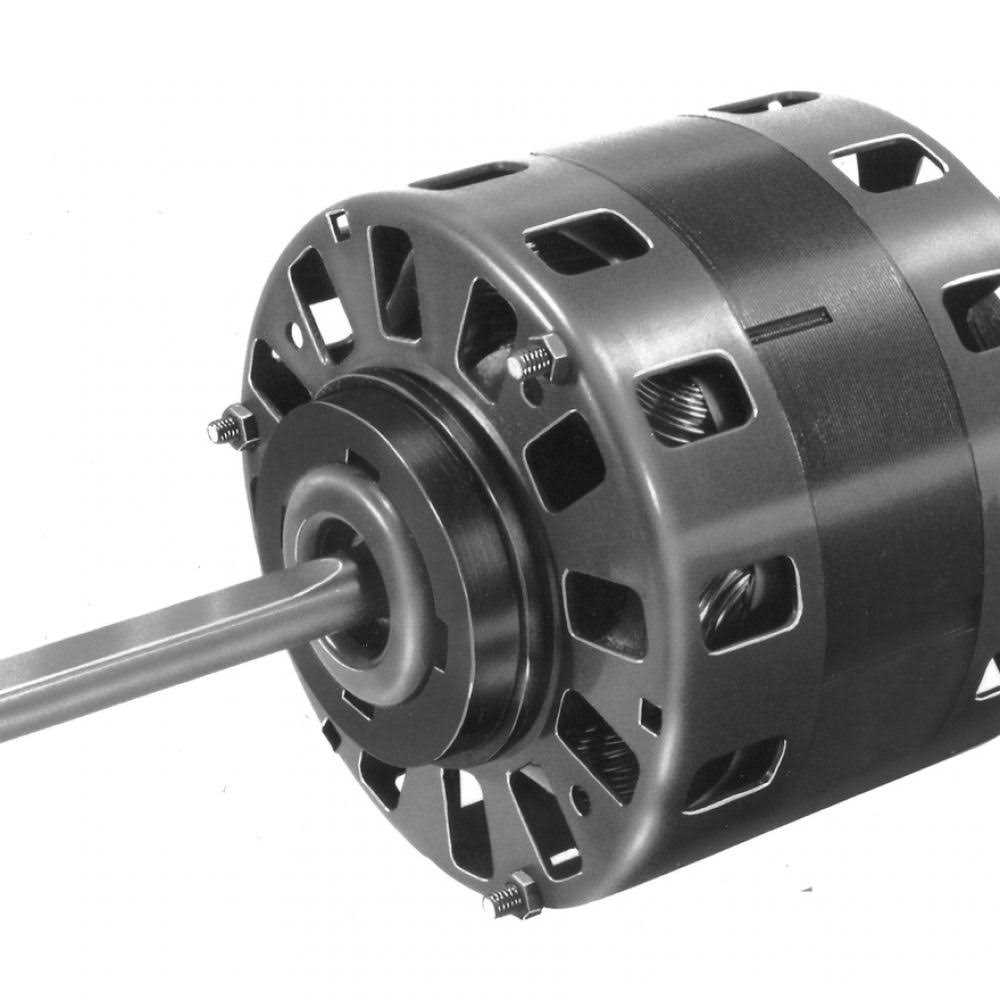

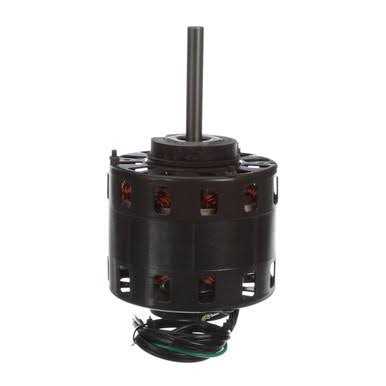

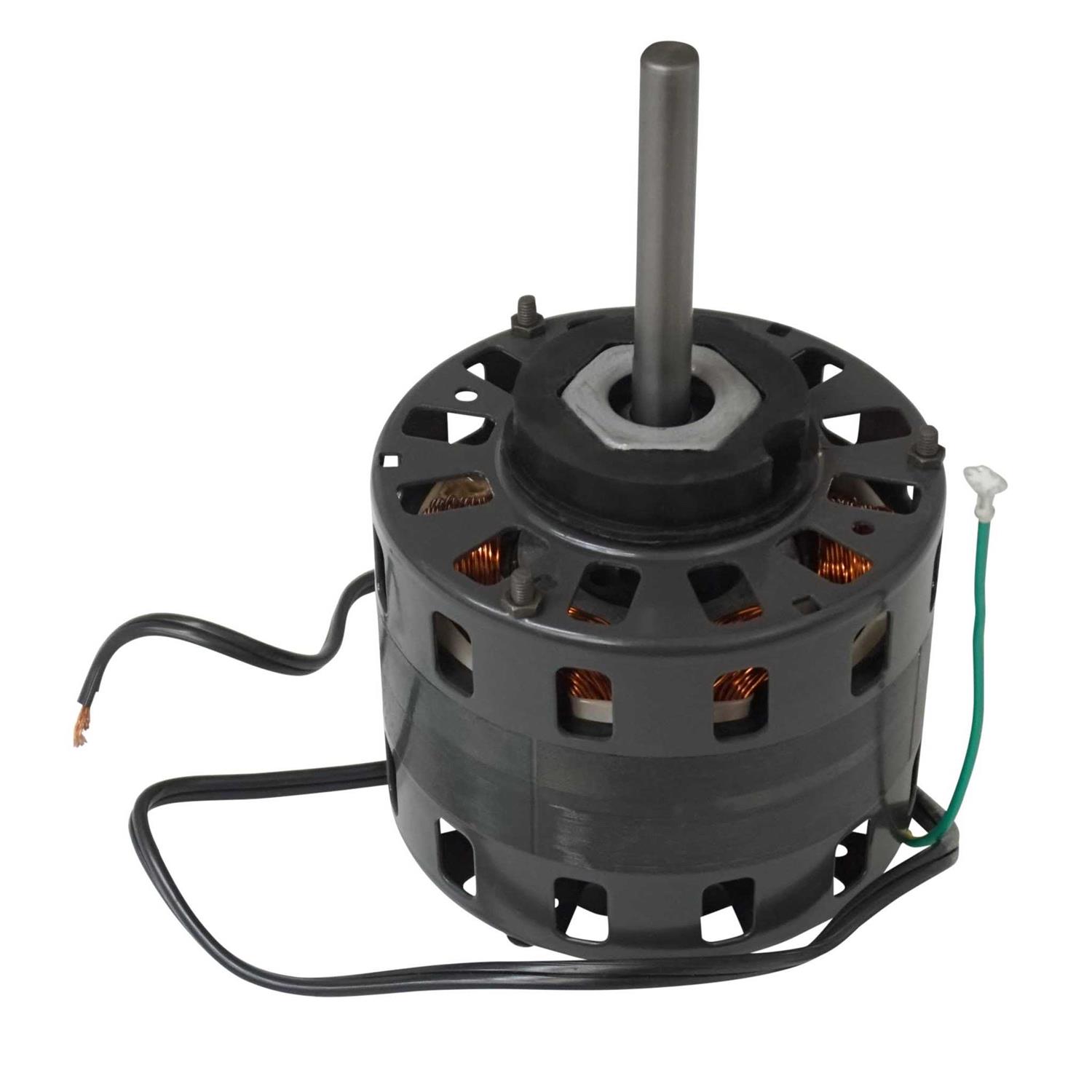

Fasco D156 5 Shaded Pole Motor

Product Overview Fasco D156 5 Inch Diameter Motors 115 Volts 1050 RPM Applications/Features Direct Drive Blower Motor 5″” Diameter – 42 Frame Shaded Pole Thermally Protected Open Air Over Class A Insulation, 40°C Ambient Sleeve Bearing 1/2″” Diameter Shaft with Flat 24″” Leads Resilient Ring Mounting Belly Band Item Specifications Motor Voltage 115 Ambient Temp. 40°C Amps 6.6 Brand Fasco Bearings Sleeve Country of Origin MEXICO Enclosure Open H.P. 1/6 Hertz 60 Length Less Shaft (In.) 3 7/8 Motor Rotation CWSE Motor Type Shaded Pole Mounting Option Resilient Rings NEMA Frame 42 Overload Protection Thermally Protected Phase Single RPM 1050 Service Factor 1.00 Shaft Dimensions (In.)”
