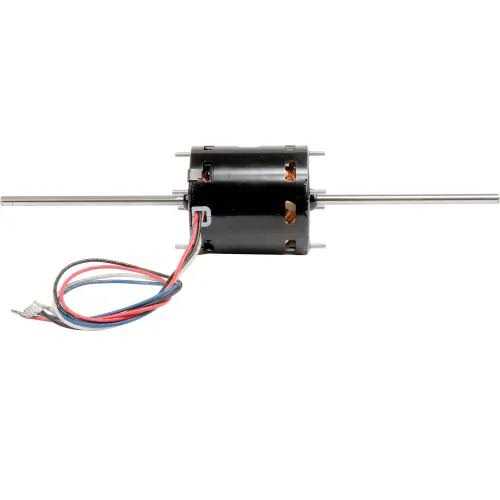

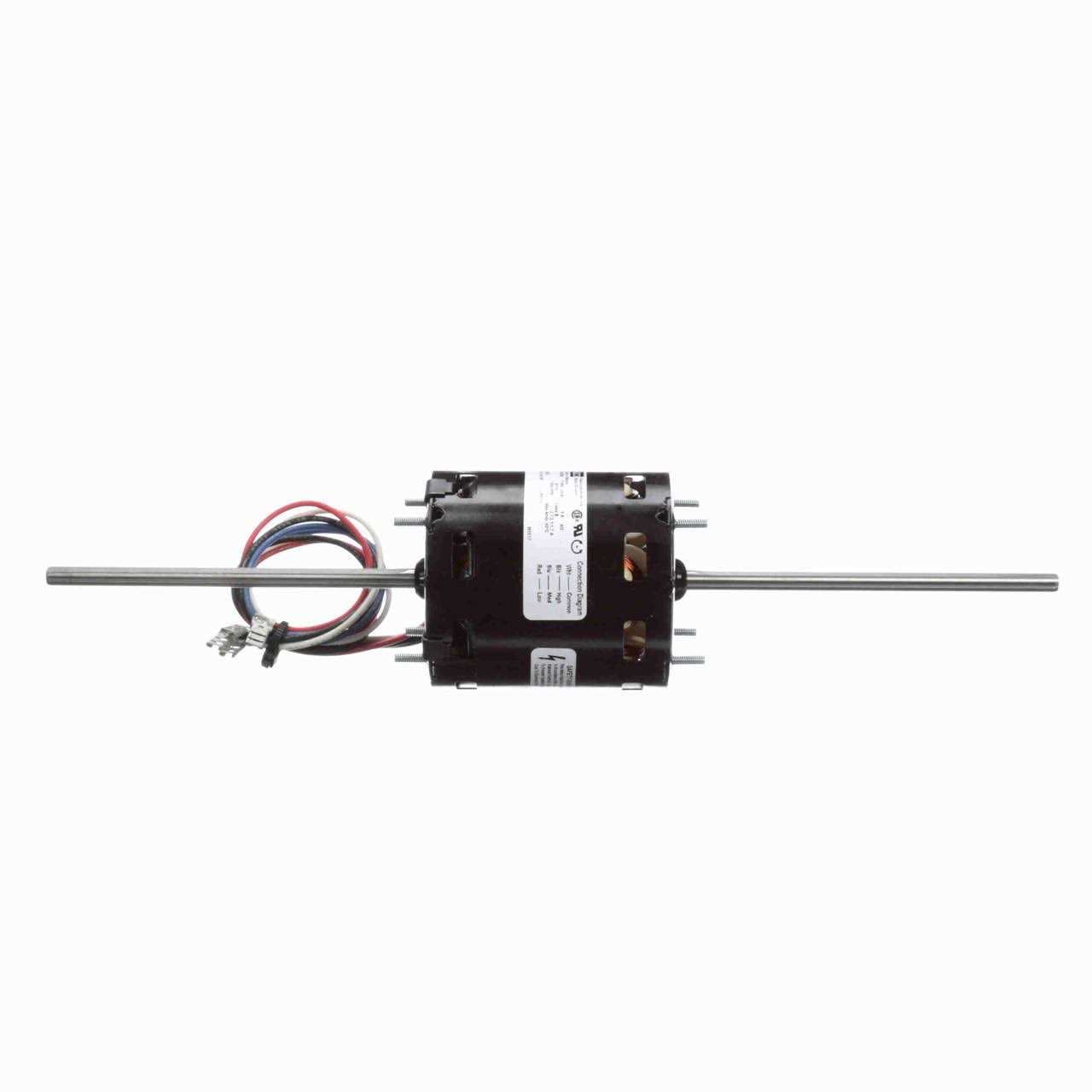

Fasco D367 3.3 Double Shaft Motor

SKU – D367 UPC – 815585029762 Window Air-Conditioning Motor 3.3″ Diameter Shaded Pole Thermally Protected Open Air Over Class B Insulation, 40°C Ambient Sleeve Bearing 5/16″ Diameter Double Shaft with Flat?” Leads with Flag Terminals Extended Studs Lead and Opposite Lead End Length 17.00 Width 3.38 Height 3.38 Dimension Unit of Measure IN Weight 5.00 Country of Origin Mexico Units in Package 1 Power Rating (In HP) 0.1 Power Rating (In KW) 0.07 Speed (Max) 1550 Voltage 115 Frame Size 3.3 Enclosure Type Open Air Over Rotation Reversible Mounting Type Extended Studs Max Ambient 40°C Shaft Diameter ( In in.) 0.313 C Dim 15.19 Connection Drawing No SEE OUTLINE DE Bearing Type Sleeve Duty Air Over Electrical Type Shaded Pole Frame Length 3.4 Frame Material Steel Frame Type 3.3 Frequency 60 HP2 1/10 – 1/15 – 1/30 Number of Poles 4 Number of speeds 3 ODE Bearing Type Sleeve Outline Drawing No 71636388 Service Factor 1 Shaft Extension 5.75 Shaft Type Flat Speed2 1550 Starting Type Across The LineThermally Protected UDF_MANUFACTURER Fasco
