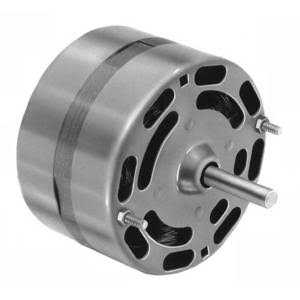

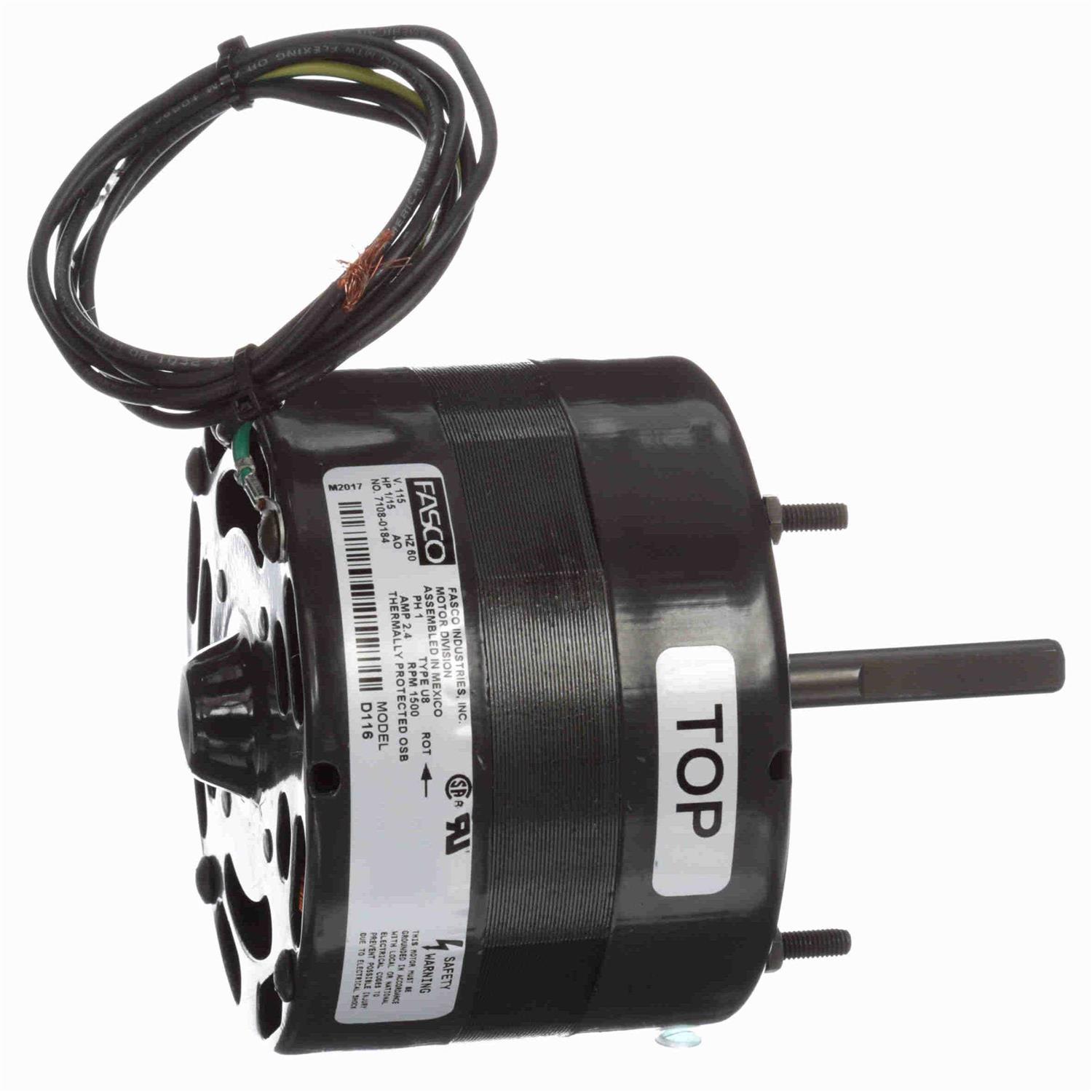

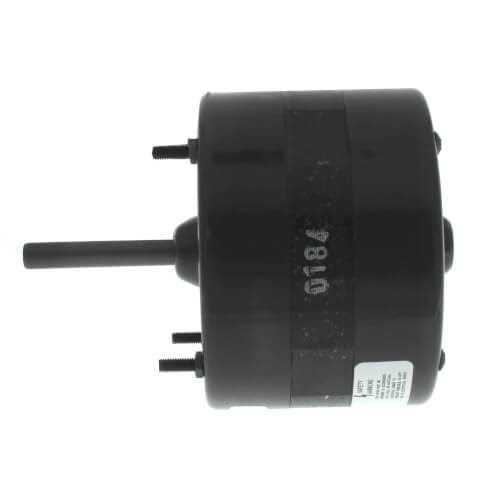

Fasco Fan And Blower Motor 1/15 HP 1 Ph 60 Hz D116

SKU – D116 UPC – 818508022215 General Purpose Motor 4.4″ Diameter Shaded Pole Thermally Protected Open Shaft End and Lead End End-Frame, Enclosed Shell, Air Over Class B Insulation, 40簞C Ambient Sleeve Bearing 3/8″ Diameter Shaft with Flat?” Leads Extended Studs Shaft End Length 4.38 Width 4.38 Height 10.00 Dimension Unit of Measure IN Weight 5.00 Country of Origin Mexico Units in Package 1 Power Rating (In HP) 0.07 Power Rating (In KW) 0.05 Speed (Max) 1500 Voltage 115 Frame Size 4.4 Enclosure Type Open Air Over Rotation Clockwise Shaft End Mounting Type Extended Studs Max Ambient 40簞C Shaft Diameter ( In in.) 0.375 C Dim 5.97 Connection Drawing No NA DE Bearing Type Sleeve Duty Air Over Electrical Type Shaded Pole Frame Length Frame Material Na Frame Type 4.4 Frequency 60 HP2 1/15 Number of Poles 4 Number of speeds 1 ODE Bearing Type Sleeve Outline Drawing No 7108018440_S001 Service Factor 1 Shaft Extension 2.45 Shaft Type Flat Speed2 1500 Starting Type Across The LineThermally Protected UDF_MANUFACTURER Fasco
