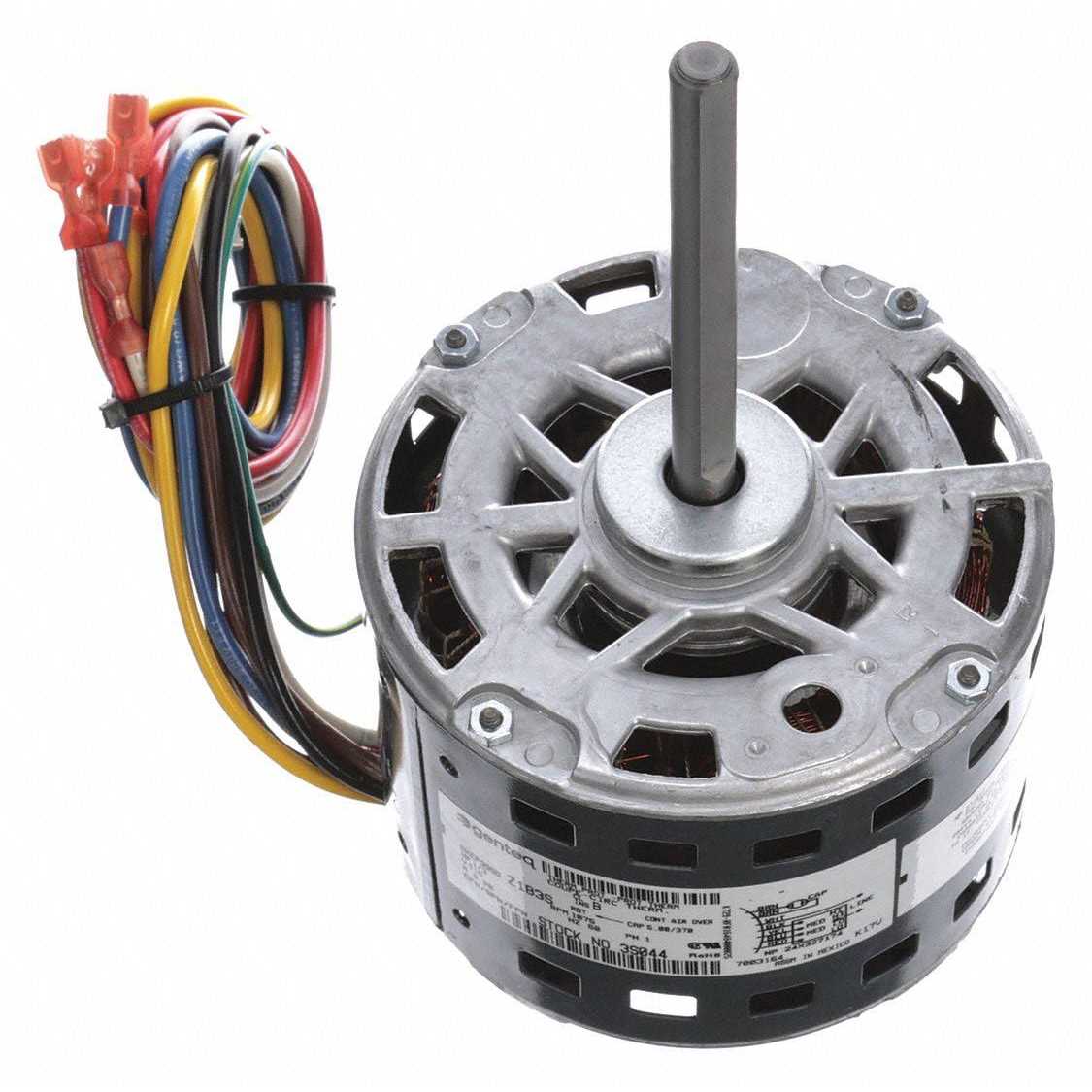

Genteq 3S044 Motor,1/3 Hp,1075 rpm,48,115V

OEM Replacement Brand Carrier/BDP, 1/3 HP, RPM Range 1001-1100, Voltage 115, Motor Shaft Rotation CCWLE, Frame 48, Ring Motor Mounting Type, Shaft Dia. 1/2 In, Shaft Length 4-3/4 In, Number of Shafts 1, Motor Thermal Protection Auto, Nameplate RPM 1075, Full Load Amps 5.2, 60 Hz, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.00, Sleeve Motor Bearings, Overall Length 9-3/8 In, Capacitor Required 2MDV4Features – Voltage: 115Capacitor Required: 2MDV4Stud Size: #8-32Shaft Length: 4-3/4″Item: Direct Drive Motor – Motor Shaft Rotation: CCWLEStandards: UL Recognized, CSA Certified – Motor Service Factor: 1.00Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240Max. Ambient Temp: 40 Degrees CPhase: 1Ins. Class: BShaft Dia: 1/2″Motor Bearings: Sleeve – Motor Sub Application: Direct Drive Fan/Blower – Motor Thermal Protection: Auto – Length Less Shaft: 4-5/8″Bolt Circle Dia: 5-1/5″Full Load Amps: 5.2Nameplate RPM: 1075Frame: 48Motor Enclosure Design: Open Air-Over – Motor Design: Permanent Split Capacitor – Motor Application: OEM Replacement – HP: 1/3Application: Carrier/BDPHz: 60Mounting Stud Pattern: 3-5/8″ x 3-5/8″Body Dia: 5-5/8″No. of Speeds: 4Overall Length: 9-3/8″RPM Range: 1001-1100Motor Mounting Type: Ring
