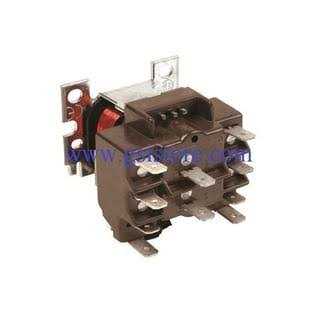

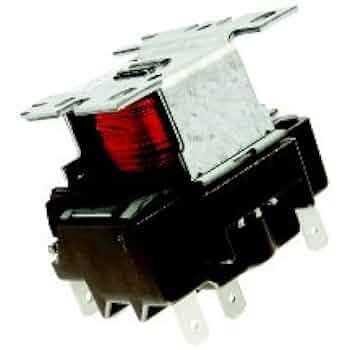

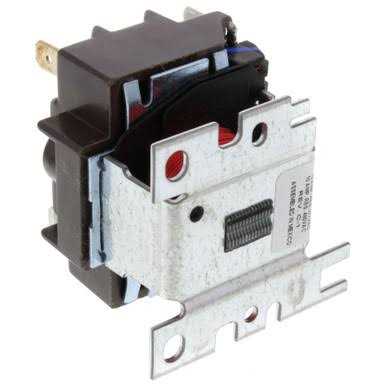

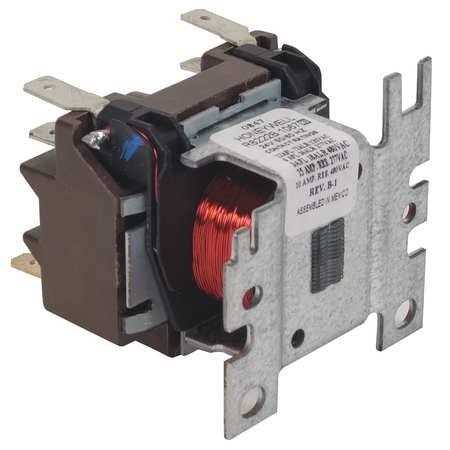

Honeywell R8222B1067 Relay

Price For: Each Resistive Amps @ 208VAC: 20.8 Mounting: Universal Full Load Amps @ 208V: 8 Transformer Secondary (V): – Hold VA: – Inrush VA: – Locked Rotor Amps @ 480V: 18 Resistive Amps @ 480V: 10 Locked Rotor Amps @ 208V: 35 Height (In.): 1-7/8 Current Drawn (Amps): – Width (In.): 2-5/32 Full Load Amps @ 120V: 12 Full Load Amps @ 240VAC: 6 Locked Rotor Amps @ 120V: 60 Application: Air Conditioning, Heating/Ventilating Control System, Motor Starting, Heating Element Operation and Power Supply Control Includes: Double Quick Connect Coil Terminals Pilot Duty @ 24V: – Locked Rotor Amps @ 240V: 35 Transformer Primary (V): – Full Load Amps @ 480V: 3 N.C. @ 120V (A): – N.C. @ 240V (A): – N.O. @ 120V (A): – N.O. @ 240V (A): – Coil Volts: 24 Resistive Amps @ 240V: 20.8 Resistive Amps @ 277V: 20.8 Full Load Amps @ 277V: 6 Locked Rotor Amps @ 277VAC: 35 Agency Compliance: UL Resistive Amps @ 120V: 20.8 Item: Magnetic Relay HP: 3/4 Type: AC Switching Depth (In.): 2-3/8 Switch Type: SPDT Country of Origin (subject to change): Mexico ‘ General Purpose Switching Relay, Coil Voltage 24 VAC, Switch Action SPDT, Height 1 7/8 Inches, Depth 2 3/8 Inches, Width 2 5/32 Inches ‘
