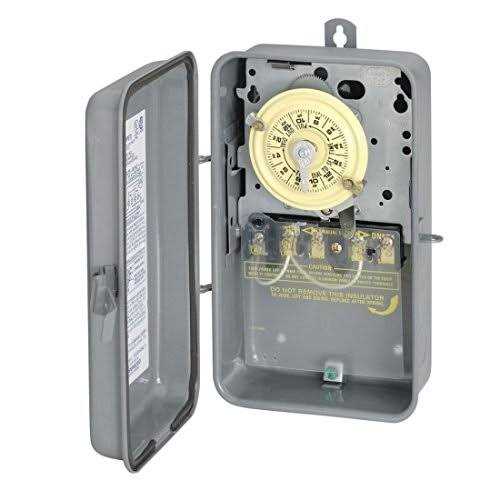

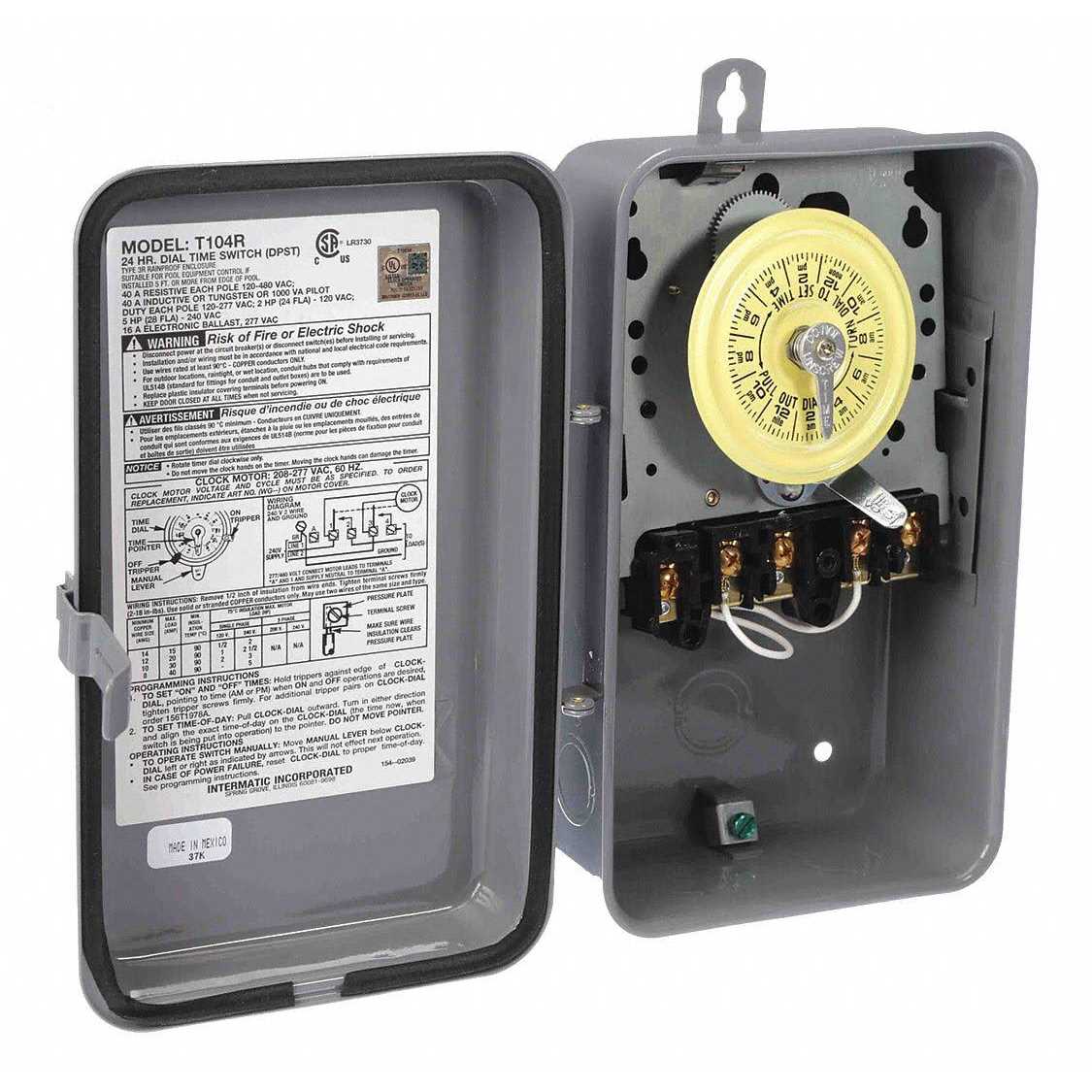

Intermatic T104R Mechanical Timer Switch

Enclosed outdoor 24 hour timer, nema enclosure 3r, contact form dpst, normally open, timer input voltage 208-277 volts, maximum time setting 23 hours, minimum time setting 1 hours, number of trippers included 2, maximum on/off cycles 12, contact power rating 240vac 5 hp, contact power rating 120vac 2 hp, current rating 40 amps, day skipper no, enclosure type steel outdoor, extra trippers 2e054, length 9.4 Inches, width 5.5 Inches, depth 3.6 Inches restrictionsnote: timers include trippers. And 7-day electromechanical timersenclosures feature lock hasp and knockouts. Snap-out timing mechanism with manual on/off override does not interfere with program. Day skipper adds the flexibility of omitting any day or days from the program. Self-lubricating, synchronous motors. Outdoor enclosures are rated nema 3r. Ul listed and csa certified. Heavy-duty clutchless gears prevent slipping contacts are tungsten-rated to handle inrush currents 10 times their rating.
