KarlKers IP66 Solar PV DC Quick Disconnect Switch 64 Amp 1000V Solar Combiner Box

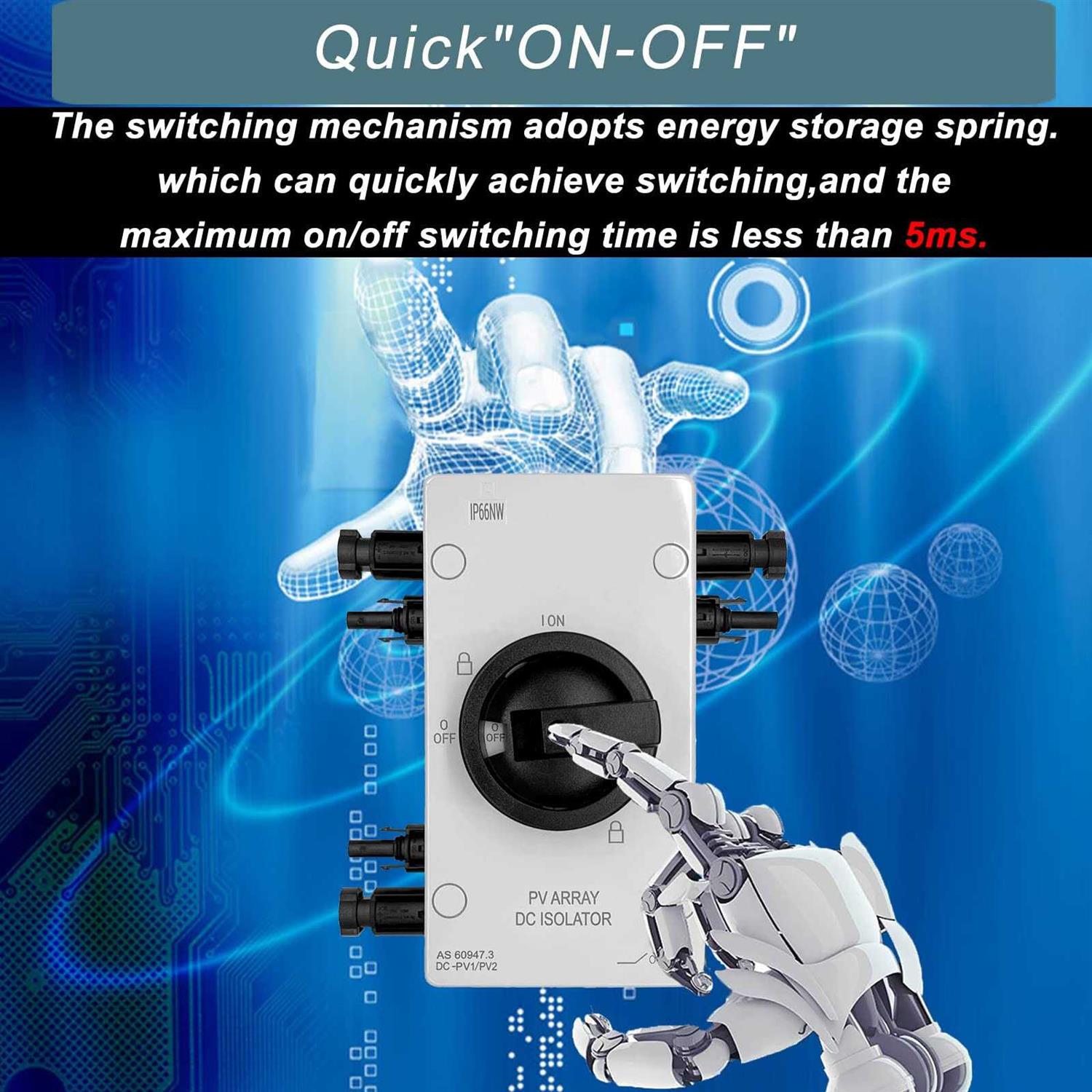

【HIGH SECURITY 】The PV switch disconnector has 2 separate circuits of 32 amps each, 64A max. for 2 circuits (rated voltage 1000V, rated insulation voltage 1500V) for high work safety. There will be no in/out leakage current when you close the solar pv isolator switch. And the solar disconnect switch has a padlocked handle that locks in the closed position and is tamper-resistant. It will be your best choice for repairing, maintaining, inspecting and installing solar power equipment 【MEET YOUR POWER REQUIREMENTS】 Modular design and compact structure, with the 2 in and 2 out PV switch disconnector, it can meet the maximum power requirements of (300V-32A; 600V-32A; 800V-32A; 1000V-16A) for each circuits. It means, the maximum power of each circuit is 25.6KW, and two circuits is 51.2KW, and also compatible with AC circuits, fully meeting the power range requirements of your on/off grid system 【HIGHER SAFETY】The solar isolator disconnect switch using magnetic arc extinguishing and arc extinguishing grid to effectively suppress the arc for high work safety 【RELIABLE & DURABLE】KarlKers’ solar pv isolator switches are made of high quality PC material, more reliable and durable than ABS materials. It has the advantages of UV-proof, flame retardant, water and dust prevention (IP66), Cold and heat protection (-40°F~+185°F), environmental aging and corrosion resistance, and long service life, perfect for outdoor and indoor installation 【EASY INSTALL 】Our solar disconnect switch suitable for connect between the solar panel and the solar charge controller, between the solar panel and the battery inverter, or solar energy storage and other DC systems. And it comes with wall mounted kit, can hang on walls, trees, brackets or planks easily, save your time and room 【WIDE APPLICATION】Solar combiner box 32A*2 strings PV DC isolator switch with solar connector for solar power system. RV, boats, and on-grid solar system, off-grid living supplies. TIPS: When your system is in series and parallel connection, each circuit should not exceed the upper limit of current 32A or voltage 1000V p Product Specifications: /b br Quick disconnect gives your solar system extra safety and flexibility when maintaining your solar system. This product allows you to quickly and conveniently disconnect DC power from solar panels to inverter/batteries. New installations of solar photovoltaic systems have increased the need for disconnect switches and over current protective devices capable of interrupting currents at voltages up to 1000 Vdc. Some US locations require a disconnect switch. PV system arrays generate DC current and need to be disconnected for maintenance or safety. Simply disconnect your solar array and reconnect when needed. br br Item Type: Solar Disconnect Switch br br Poles: 2 in 2 out br br Material: PC br br Waterproof Grade: IP66 br br Flame Retardant Grade: UL94V-0 br br Standard: IEC60947-1 & 3 br br Rated Voltage: 1000V*2 String br br Rated Current: 32A*2 String br br Rated Power:(0~300V-32A;600V-32A;800V-32A;1000V-16A) x 2 string br br Rated Impulse Withstand Voltage Uimp: 8KV br br Rated Insulation Voltage Ui: 1500V br br Operating Temperature: 40°C~+85°C(-40°F~+185°F) br br Dimensions: 4.38 x 7 x 7 inches p Application /b br RV, Boats, and Off/On-Grid Solar System br IP66 Installed Outdoors or Indoors p What’s in the Box /b br DC Disconnect Switch br 4*Screw br 2*Bracket
