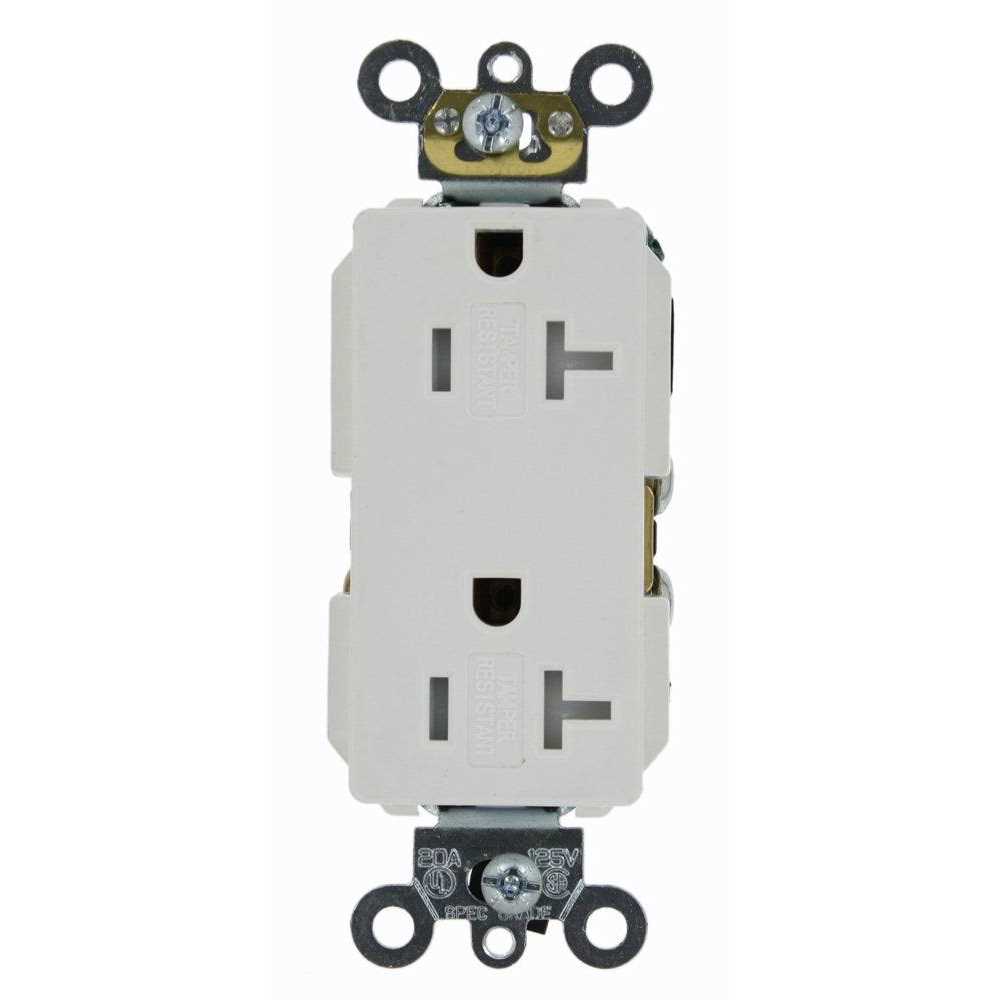

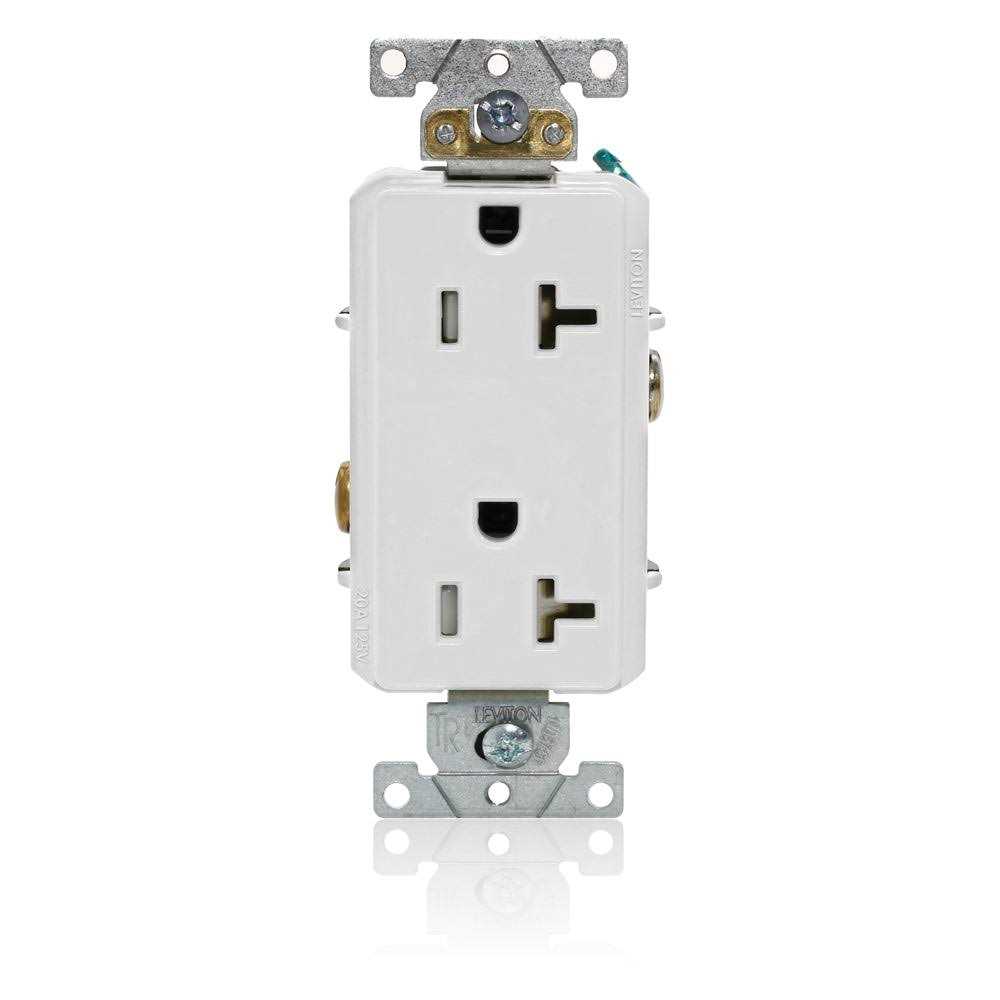

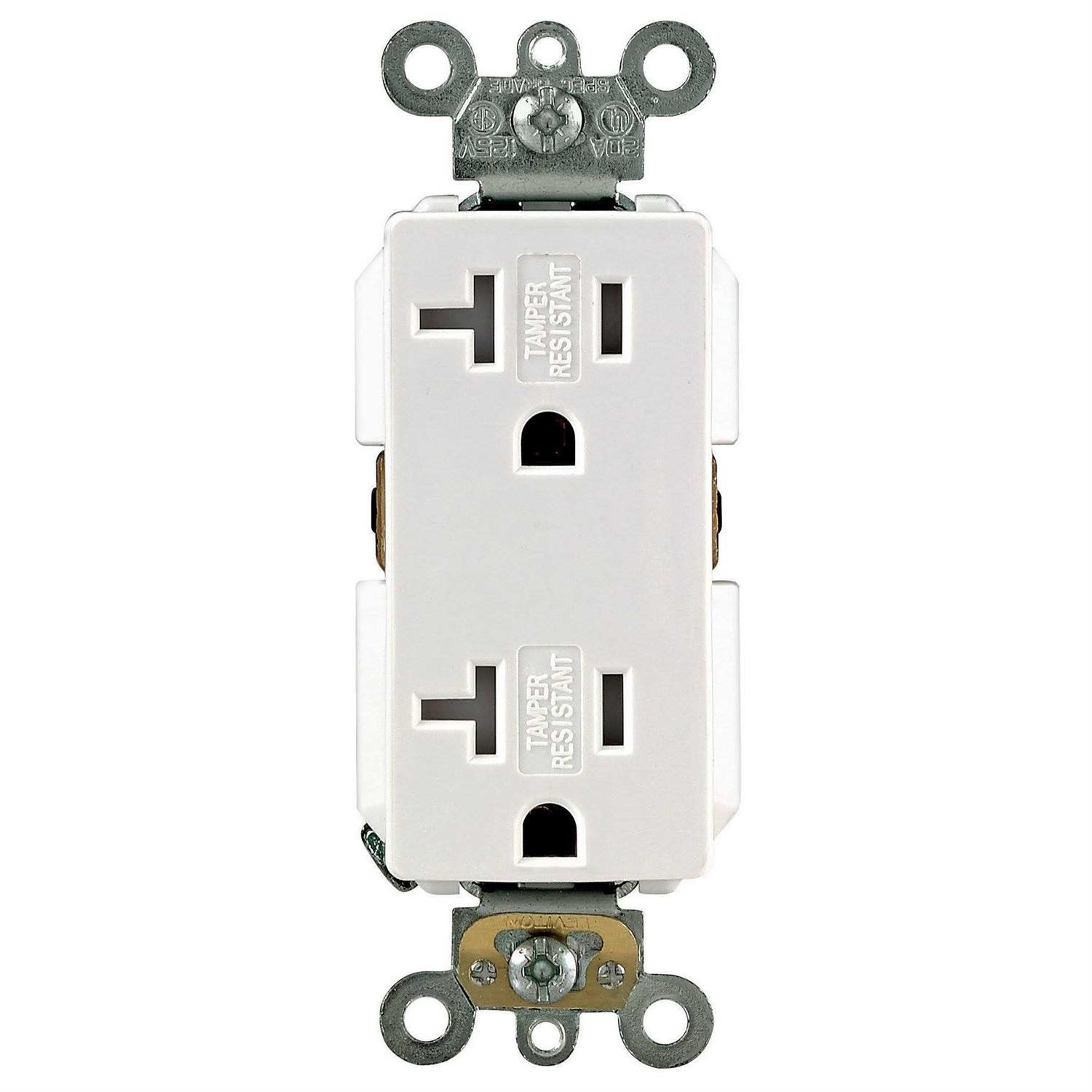

Leviton White 20 Amp Decora Plus Duplex Receptacle TDR20-W

Leviton Decora Plus Straight blade tamper-resistant duplex receptacle in white color features nylon body and face for impact as well as rust resistance. Receptacle has AC horsepower rating of 1 hp and comes with nickel-plated brass strap and clamp nuts. It works at full rated current and can withstand dielectric voltages up to 2000 Volts. The 2-Pole self-grounding receptacle has three-wire circuitry and comes with nickel-plated brass 0.031-Inch thick triple-wipe line contacts for longer service life. Receptacle is ideal for commercial applications. It has a current rating of 20 Amps and a voltage rating of 125 Volts. It measures 1.520 Inch x 1.140 Inch x 4.060 Inch. Receptacle has back and side wired connection for added convenience. It can accommodate a wire of size 14 – 10 AWG and has brass-hot, green-ground and silver-neutral terminal for easy identification. Receptacle has nickel-plated 10-32 brass terminal screws, 8-32 nickel-plated brass-grounding screw, nickel-plated brass ground clips and 5-20R NEMA configuration. It has a rated UL 94 V-2 flammability and operates at -40 to 60 deg C temperature. At 200% rated current, receptacle has a maximum temperature rise of 30 deg C after 250 cycles overload. Receptacle is UL 498 listed/CSA certified and meets NEMA/NOM/ANSI standards.
